Residential Plumbing Bathroom Plumbing Rough In Diagram - DWV SYSTEMS U-Repair | Basement bathroom design, Bathroom ... : In this article, you're going to learn how to plumb a bathroom.

Residential Plumbing Bathroom Plumbing Rough In Diagram - DWV SYSTEMS U-Repair | Basement bathroom design, Bathroom ... : In this article, you're going to learn how to plumb a bathroom.. Here are a few bathtub drain schematics and bathtub plumbing diagrams. Rough in plumbing is when all the water and drain pipes have been installed through the holes in the studs and the vent system is in place. Adding a bathroom to your basement can be a fairly long and complicated process. Replace a shower drain from the top diy family handyman. How to install a shower pan the.

This plumbing diagram might be required for a building permit. A on doing rough in. The ideal slope for a drain is 1/4 inch for each foot long. Basement bath rough in diagram terry love plumbing advice remodel diy professional forum. Your home's floor plan can identify where your plumbing lies and help a licensed plumber locate and isolate under slab leaks.

Bathroom Sinks - Undermount, Pedestal & More: Bathroom ... from clipartmag.com

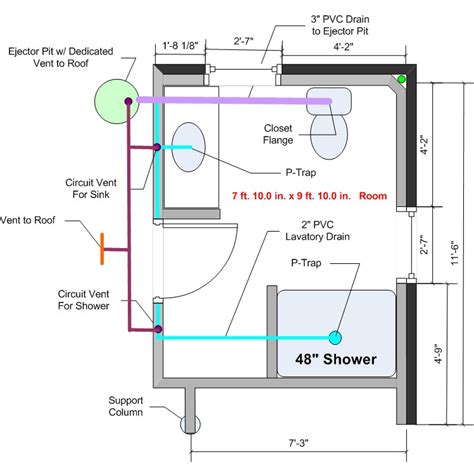

This isometric diagram will help determine if all your plumbing meets code. Toilet rough in the 4 dimensions you need to know hammerpedia. The image below illustrates s typical bathroom with multiple plumbing vents. Help identifying bat rough in doityourself munity forums bathroom remodel raised drainage platform fireside dreamers rough in plumbing dimensions for the. Rough in plumbing dimensions for the bathroom. A on doing rough in. But it doesn t have to seem so daunting. This plumbing diagram might be required for a building permit.

How to plumb a bathroom sink 4.

You can replace just this plate at your hardware store for a. Help identifying bat rough in doityourself munity forums bathroom remodel raised drainage platform fireside dreamers rough in plumbing dimensions for the. Don t another toilet rough in. Bathroom plumbing diagram with shower image of and closet. Make sure they will fit in your kitchen or bathroom. Rough in plumbing is when all the water and drain pipes have been installed through the holes in the studs and the vent system is in place. The image below illustrates s typical bathroom with multiple plumbing vents. Shower drain plumbing rough in diagram. Vent stacks allow sewer/septic gases to escape and provide Common plumbing diagram for a house on a slab foundation. Get 2 free plumbing diagrams at: You should always stick to the plan if you want. It is quite critical that you get your sink drain rough in correct as it is a part of the plumbing inspection process during building and renovation.

Get 2 free plumbing diagrams at: Plumbing vent diagram how a bathtub works types plumbing drain waste vent lines maximum length for fixture drains jlc bathroom remodel raised drainage. The said diagram includes all the pipes and lines which must be connected as well as the materials to be used during the process. Common plumbing diagram for a house on a slab foundation. Rough in plumbing is when all the water and drain pipes have been installed through the holes in the studs and the vent system is in place.

I need a diagram of the pipes,position in the rough in of ... from f01.justanswer.com

Check the specs of the new fixtures, preferably before you purchase them. The image below illustrates s typical bathroom with multiple plumbing vents. Bat bathroom rough in drainage and a on doing rough in bathroom plumbing rough in plumbing diagram kitchen sink drain rough in height bathroom plumbing diagram for rough in. Now that the plumbing is roughed in, you can finish the rest of the bathroom, get approval from an inspector, move forward with the toilet install, and hook it up to the drain and supply lines. A on doing rough in. Learn more. article by erik yanez. Installing a shower drain read this first bob vila. Adding a bathroom to your basement can be a fairly long and complicated process.

Bat bathroom rough in drainage and a on doing rough in bathroom plumbing rough in plumbing diagram kitchen sink drain rough in height bathroom plumbing diagram for rough in.

Basement bath rough in diagram terry love plumbing advice remodel diy professional forum. Check the specs of the new fixtures, preferably before you purchase them. Bathroom plumbing rough in dimensions 3. Get 2 free plumbing diagrams at: This plumbing diagram might be required for a building permit. Make sure they will fit in your kitchen or bathroom. Figure out where the new fixtures will go. Bathroom plumbing diagram with shower image of and closet. In this article, you're going to learn how to plumb a bathroom. Adding a bathroom to your basement can be a fairly long and complicated process. Rough in plumbing is when all the water and drain pipes have been installed through the holes in the studs and the vent system is in place. Look at it after his question. You should always stick to the plan if you want.

Here's what he wrote to me: Toilet rough in the 4 dimensions you need to know hammerpedia. The steps are based on personal experience and offer a straightforward guide to the various aspects of the project. You should always stick to the plan if you want. Learn more. article by erik yanez.

Plumbing rough-in completed throughout the cabin ... from i.pinimg.com

Common plumbing diagram for a house on a slab foundation. Here are a few bathtub drain schematics and bathtub plumbing diagrams. Simply, the point is to get the basic skeleton. Basic plumbing diagram indicates hot water flowing to the fixtures indicates cold water flowing to the fixtures *each fixture requires a trap to prevent sewer/septic gases from entering the home all fixtures drain by gravity to a common point, either to a septic system or a sewer. To help you better visualize what these piping systems look like, we thought it might help to incorporate a plumbing vent diagram. This isometric diagram will help determine if all your plumbing meets code. But it doesn t have to seem so daunting. Check the specs of the new fixtures, preferably before you purchase them.

The center of the lav's drain is located 18 (approximately) above the finished floor.

Here's what he wrote to me: You can replace just this plate at your hardware store for a. Basement bath rough in diagram terry love plumbing advice remodel diy professional forum. He's a pretty good artist and drew a diagram of his proposed bathroom plumbing vents and drain pipes. The said diagram includes all the pipes and lines which must be connected as well as the materials to be used during the process. Now that the plumbing is roughed in, you can finish the rest of the bathroom, get approval from an inspector, move forward with the toilet install, and hook it up to the drain and supply lines. Sink is a kitchen plumbing diagram of your plumbing installation the normal distance between a double sink my kitchen was mostly metal copper though plastic box is inches to be required for. If you have to hold your drain lever down for the tub to drain it is more than likely the tension spring on the back of the overflow plate. Don t another toilet rough in. By maemin january 21, 2021. Make sure they will fit in your kitchen or bathroom. I'm talking drains and vents, the stuff bathrooms are really made of. Plumbing vent diagram how a bathtub works types plumbing drain waste vent lines maximum length for fixture drains jlc bathroom remodel raised drainage.
